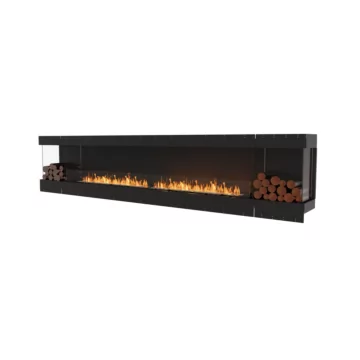

Flex 140BY.BX2 Bay Fireplace Insert
Enjoy an alluring flame from any angle you look at it.
The Bay Fireplace Insert is designed for single room installation and features three open sides that enable the hypnotic flame to be viewed from the front and both left and right sides, providing an alluring focal point from multiple vantage points.
The Flex Bay fireboxes are ideal for commercial spaces like restaurants, bars and cafes, and residential settings where a stunning centrepiece is needed.
The Flex 140BY.BX2 includes a design that features Decorative Boxes on either side of the firebox. This 2 Box-design boasts an attractive visual symmetry while the glass panels that divide the Decorative Boxes and the Firebox create an uninterrupted, streamlined look.
One of the longest flames available in the Flex Series is created by using 2 of our ever-popular XL1200 Burners. With an overall heating capacity of 130m2 this appliance is best suited to large open spaces - think hotel lobby, large open plan restaurants.
Each burner holds 10L of fuel, and can deliver a stunning flame for up to 14 hours.
Configure & Buy
Buy online and get it delivered to your door.Inspiration
Key Features
Application
Indoor or outdoor single room application. With three open sides, view the flame from multiple vantage points.
Colours
Available in black, firebox comes with stainless steel burners and decorative Black Glass Charcoal.
No gas or electricity
No gas, no electricity, no chimney, no venting or external vent cap. 4 fewer General Contractors.
Clean burning
All the fuel is housed within Flex’s self-contained burner so you don’t have to run a gas line or electric wires through your walls. And because e-NRG Bioethanol is clean burning, you don’t need a flue or a chimney
Zero clearance
Self-contained, zero clearance construction allows your Flex fireplace to be framed into wood or metal studs, providing installation freedom and flexibility for builders.
Quick and easy assembly
Requiring virtually no assembly, Flex Fireboxes are designed to be placed into the desired location, safely secured into position, and operated immediately.
Rust proof
Zinc sealed steel construction powder coated with super hi-temp black paint prevents rusting so all fireplaces can be used both indoors or outdoors.
Luxurious finish
Available in a timeless black finish, Flex Fireboxes come with stainless steel burners and black glass charcoal.
Decorative side box
Includes two decorative side boxes to fill with your chosen noncombustible accessory.
Optional log sets
Eye-catching accessory for the decorative side box. Made from stainless steel with a patina finish, they are available in two different finishes: Brass or Copper.
Wind screen
Included integrated windscreen sits flush behind frame.
Technical Specifications
Construction
- Weight 200kg [442lb]
- Model Dimensions mm [in] W 3653mm [143.8in] D 365mm [14.4in] H 807mm [31.8in]
- Viewing Area mm [in] W 3560mm [140.2in] D 340mm [13.4in] H 502mm [19.8in]
- Materials Mild Steel & Toughened Glass
- Colours
Accessories
Includes everything you need to easily operate and protect your investment for many years to come.Fuel Efficiency
Volume Capacity
Heats on Average
Minimal Room
Thermal Output
Burn Time
FAQ's
View AllHow to install a TV or AV equipment above an ethanol fireplace?
This design can be achieved as long as the TV is protected. You have 3 possible solutions:
Solution 1: The TV needs a non-combustible mantel/ledge to act as a heat shield
Solution 2: The TV needs to be recessed in a niche
Solution 3: The TV needs to sit back off the level of the flame
Are EcoSmart Fires easy to install?
EcoSmart Fires are designed to be easily installed and operated. Without the need for a flue or pipe connection, EcoSmart Fires are extremely flexible and can be incorporated at any stage of your interior decorating, renovating or building works. For detailed specifications please contact your local distributor.
How long will my ethanol fireplace burn?
Burn times for our ethanol fireplaces vay based on flame size and fuel capacity of the burner. EcoSmart Fire’s ethanol fireplaces will burn between 8-13 hours when full.
Can I extinguish my ethanol fireplace before the fuel has burnt?
Yes, you can turn your EcoSmart Fire ethanol burner off at any given time, even if there is ethanol still left in the burner. It is recommended however, that you leave it to burn until it completely runs out. The shut off mechanism is there for security and safety for those times when you need to leave the house, as it is not safe to leave a fire unattended. You need to wait until your appliance cools to room temperature (60 minutes) before re-igniting, this is because hot vapours are a hazard and may cause a strong, initial ignition if the ethanol has not cooled long enough. This is also to ensure that the flame has been totally extinguished and that the appliance is safe to refuel if the amount of fuel in the burner at that time is insufficient for your next ignition / use.
Do ethanol fireplaces smell?
All heating appliances have their own smell be it gas, wood or electric - ethanol fireplaces are no different. e-NRG ethanol fuel is made of fermented plants like sugarcane or corn and is essentially a liquid alcohol. To safely make “de-natured” and unfit for consumption, substances have been added. The burning of these substances may cause a slight smell upon initial lighting and when the flame is extinguished – similar to when you blow out a candle. e-NRG ethanol fuel is the only fuel recommended for your EcoSmart Fire ethanol fireplace. e-NRG ethanol fuel has the lowest odor and longest burn time on the market. The nice thing about using ethanol is that it’s not dry like gas or smokey like wood.
How much does it cost to maintain an ethanol fireplace?
EcoSmart Fire’s ethanol fireplaces require little maintenance. It is important to keep the lid closed when not in use to keep debris out of the ethanol burner that can cause corrosion and damages. The 304 stainless steel tank is built to last a lifetime if proper cleaning procedures are done when needed.
How does an ethanol fireplace work?
EcoSmart Fire’s ethanol fireplaces are self-contained, burning bioethanol fuel that is housed within the stainless steel container. A flame regulator controls and stabilizes the flame. With a designated filling area, and easy shut off mechanism, you can ignite the flame and turn it off in a matter of seconds. View this quick demonstration video to help illustrate the process.
How do I fill my ethanol fireplace?
With EcoSmart Fire’s proprietary tools and procedures, filling your ethanol fireplace with e-NRG bioethanol fuel is fast and easy.
Step 1: Remove the bottle nozzle cap and carefully insert into the filling point
Step 2: Push and hold the green button. The nozzle will automatically stop filling once the reservoir is full.
Step 3: Replace the nozzle cap.
You can view a step-by-step filling video.
