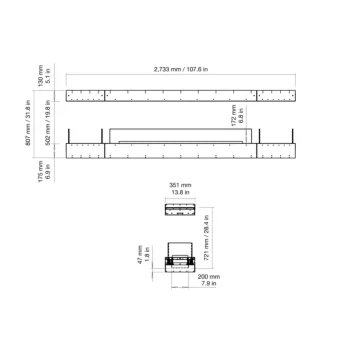

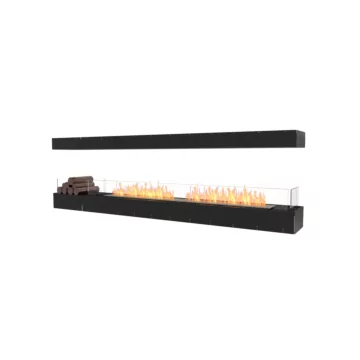

Flex 104IL.BX2 Island Fireplace Insert

How do I fill my ethanol fireplace?

With EcoSmart Fire’s proprietary tools and procedures, filling your ethanol fireplace with e-NRG bioethanol fuel is fast and easy.

Step 1: Remove the bottle nozzle cap and carefully insert into the filling point

Step 2: Push and hold the green button. The nozzle will automatically stop filling once the reservoir is full.

Step 3: Replace the nozzle cap.

You can view a step-by-step filling video.

Where is the best place to install an ethanol fireplace?

Our ethanol fireplaces can be installed virtually anywhere - in walls, cabinets, high rise buildings, commercial / residential / hospitality spaces, indoors and outdoors. Because EcoSmart Fire’s ethanol fireplaces are ventless, they require no gas line, no electricity, and no chimney for a hassle free and cost effective installation. Our ethanol fireplaces have been designed and tested with safety as our top priority. We have outlined requirements for each ethanol burner, ethanol fireplace insert, and ethanol freestanding fireplace in our collection. These guidelines include minimum room size requirements and clearance recommendations for flammable materials and movable objects. Please refer to our manual for more information.

What is a bioethanol fireplace?

A Bioethanol fireplace is an open fireplace that is fueled by bioethanol. A real flame is produced by the lighting of bioethanol, with a by-product being heat in the process. It is a fireplace that needs no flue for exhausting emissions, no utilities such as electricity or gas connection, and it uses a sustainable fuel source.

How do I clean my EcoSmart Fire ethanol burner?

Cleaning of the ethanol burner should be done only after you have used 50 litres of fuel or as soon as you notice a black residue forming around or on the burner. Before starting, make sure the burner is off, empty of ethanol, and at room temperature. Spray a multi-purpose cleaner on the surface of the burner and wipe with cloth, making sure to wipe in the direction of the grain. If material has fallen into the ethanol fireplace burner use a vacuum cleaner to remove debris through the burner opening. If your burner smells unusually strong after extensive use, remove the empty and room temperature burner from its surround and wash in hot, soapy water. Rinse thoroughly under running water and wait until the burner is completely dry before placing it back into its surround and reusing. View this video of the simple cleaning process here: https://youtu.be/VqHg9mXOc0U

Note: Stainless steel will rust or corrode over time if contamination or debris is not cleaned or removed immediately. When not in use, we recommend that you protect your ethanol fireplace from water damage or corrosion with a protective cover and the regular use of the burner lid included with your model.

Are ethanol fireplace inserts difficult to install?

Unlike gas fireplaces or traditional wood burning fireplaces, our ethanol fireplace inserts require no venting, no gas line, no electricity - eliminating the need and cost of three sub contractors. They are simply mounted into the constructed main wall framework with the appropriate opening size for the fireplace insert selected. EcoSmart Fire’s ethanol fireplace inserts are extremely flexible and can be incorporated at any stage of your interior decorating, renovating or building works. For detailed specifications please contact us.

What is bioethanol fuel?

Bioethanol (also known as methylated spirits or simply ethanol) is a form of renewable energy. It’s a clear, colourless liquid that’s commonly made from fermenting the sugar and starch components of plant by-products like sugarcane and grain crops.

Can I extinguish my ethanol fireplace before the fuel has burnt?

Yes, you can turn your EcoSmart Fire ethanol burner off at any given time, even if there is ethanol still left in the burner. It is recommended however, that you leave it to burn until it completely runs out. The shut off mechanism is there for security and safety for those times when you need to leave the house, as it is not safe to leave a fire unattended. You need to wait until your appliance cools to room temperature (60 minutes) before re-igniting, this is because hot vapours are a hazard and may cause a strong, initial ignition if the ethanol has not cooled long enough. This is also to ensure that the flame has been totally extinguished and that the appliance is safe to refuel if the amount of fuel in the burner at that time is insufficient for your next ignition / use.

How to install a TV or AV equipment above an ethanol fireplace?

This design can be achieved as long as the TV is protected. You have 3 possible solutions:

Solution 1: The TV needs a non-combustible mantel/ledge to act as a heat shield

Solution 2: The TV needs to be recessed in a niche

Solution 3: The TV needs to sit back off the level of the flame
